Water is a direct revenue risk factor for the mining industry

Skarn Water is the research and consulting arm of Skarn Associates focused on water use in the mining industry. Skarn Water is based on a novel water use and risk assessment methodology where we apply a mining analyst's approach to normalise key water indicators: We use technical, operational and commercial data to contextualise water management at each site, with transparent benchmarking and estimation where necessary.

The market requires this

  • For investors
  • For regulatory reporting
  • For operational reporting
  • For risk/strategy planning
  • For stakeholders

Skarn's tool provides

  • Analysis of financial, production and future risk
  • Water use/intensity benchmarking
  • Presentation-ready dashboards

We Measure

  • Impact on water use efficiency
  • Effect on water availability and climate change



Skarn Water offers two main services


  • Standard water benchmarking products for various mining stakeholders, providing detailed bottom-up assessment of water management at mine, company and country level.
  • Tailor-made water consulting studies and solutions for mining companies, the financial sector and technology providers, where we provide strategic solutions and insights into the use, risks, opportunities and comparisons of water use in the industry.


    Skarn Water Benchmark Tool

    is an in-depth analysis tool of water use in the mining industry, focused on mining companies and other users requiring access to the full suite of data, visualisation and simulation options. Some of the functionalities included cover mine water management performance, climatic water context, environmental impact, financial risk impact and transparency and reporting standards.

    Skarn Water Pathfinder

    is aimed at project developers or single asset operators who wish to benchmark the water performance of their operations or future projects. It enables early identification of specific water-related ESG risks, based on the experience of similar operations in similar environments. Supported by the Skarn team, Pathfinder allows developers to project future water performance settings using only preliminary design parameters and the Pathfinder database.

    Skarn Water Investor

    is the tool used by the financial sector to analyse water performance of portfolios of assets. It supports simulation water metrics analysis of portfolios, and is focused on those metrics recommended for TCFD reporting and financial risk analysis.

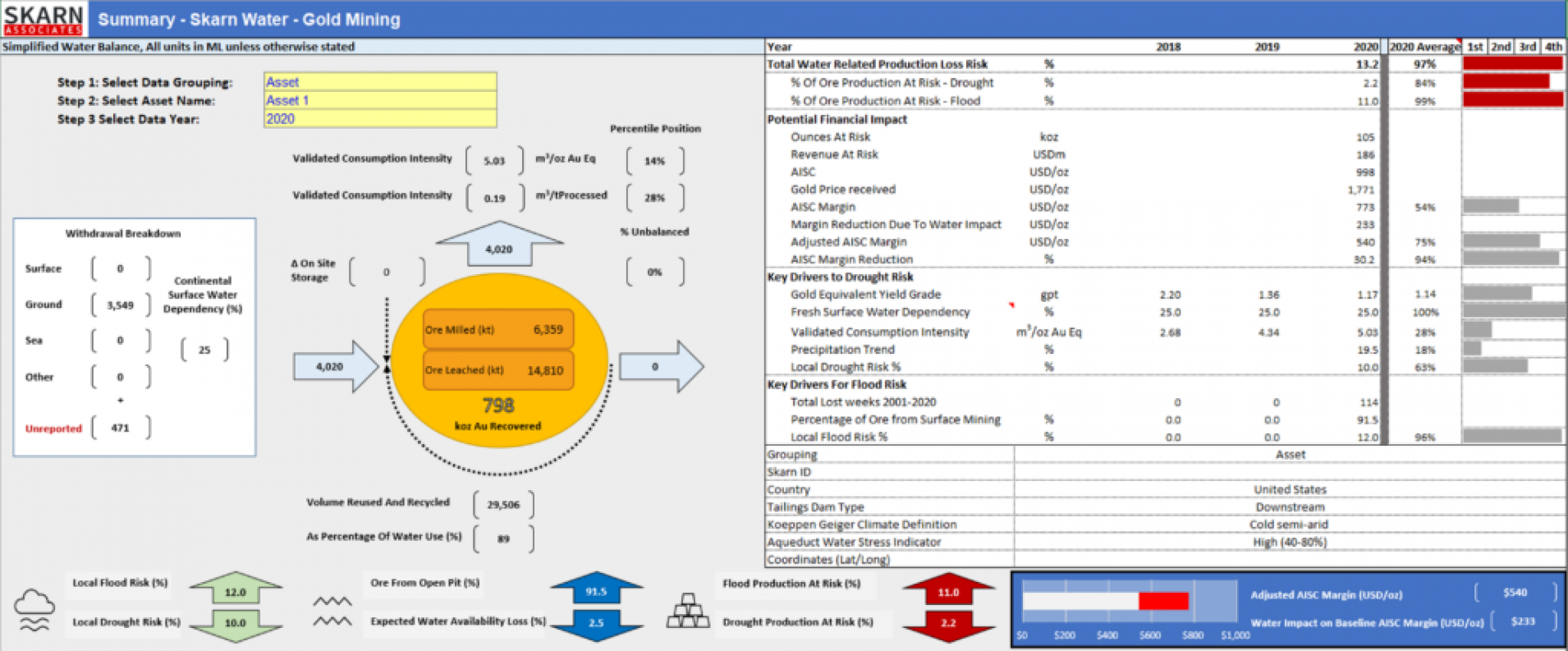

Asset level -Simplified Water Balance

In many cases, when mining companies disclose water data, the volume of reported withdrawn water does not represent the total water used in the operation. Not all rainwater, run-off, dewatering, and other flows are completely captured and disclosed in the reported water balance indicators. As a result, many mining companies are underreporting water consumption or reuse efficiencies, with some extreme cases of negative water consumptions or reuse efficiency higher than 100% being seen.

Under reporting of water data make it very hard for stakeholders of the industry to assess operational performance. Skarn have addressed this using benchmark parameters and industry expertise to allow for a like-for-like comparison.

Asset level - Simplified Water Balance

Company level water impact - water withdrawal intensity

The following graph from Skarn Water shows the withdrawal intensity per company to produce an ounce of gold equivalent, through aggregation of site level data. As shown in the chart, most companies take less than 30 m3 of water from the environment, however 25% of global gold production withdraws more than this, in some cases over 100 m3 per ounce of gold. ,This includes some Tier-1 gold producers.

Company level water impact

Company level water impact - water withdrawal intensity

External Climate Water Analysis

The Skarn Water product enables external water related climate analysis at site level. Using georeferenced local historic monthly water climate data allows for analysis of annual and seasonal variability, including indicators of probability of extreme events. This information may also be extrapolated to future water trends (climate change) through a collation of recent precipitation data compared to historic records. Skarn Water is using external publicly available climate datasets such as East Anglia - Climate Research Unit TS 4.05

External Climate Water Analysis

Water- related production at risk probability

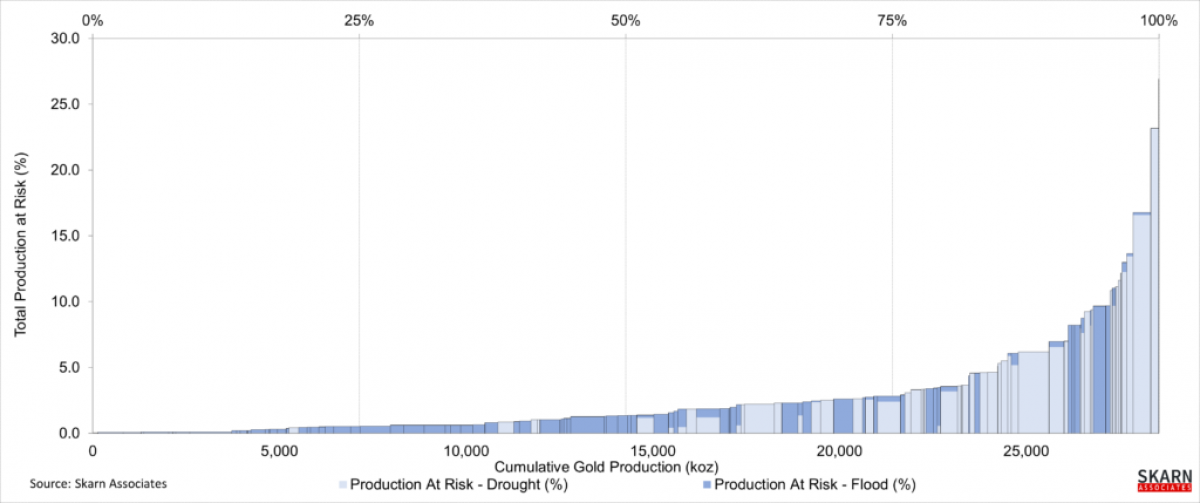

When combining both relevant mine site production parameters with external climate data analysis, Skarn Water automatically generates a forward-looking water-related production at risk quantification for each mine site, based on current production data, water-related production exposure and recent precipitation trends. The following graph shows the aggregate production ounces at risk at country level, both from a drought as well as flood perspective.

External Climate Water Analysis

The graph clearly demonstrates that water-related production risk varies greatly from location to location, and that most production at risk is drought related. It is interesting however that for any given country both flood and drought risk are present, albeit to varying degrees.

External Climate Water Analysis

When evaluating the same production at loss parameter at asset level, it immediately becomes clear, although the country level visualization is very clarifying for a general view, it does not capture the power of asset level analysis.

Whereas country level analysis flags about 90% of the production with identified risk values, when evaluating at asset level, this reduces to 60% of the assets. Probably more important though is the identification of an important number of mining operations with very high water-related production risk.

For more information regarding Skarn Water - Gold Mines product please contact:
Raymond Philippe, General Manager - Skarn Water, raymondphilippe@skarnassociates.com
